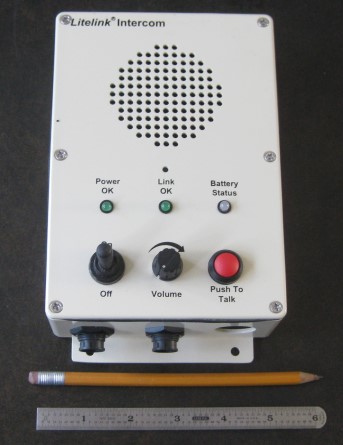

INCX-2101 / 2201    Fiber Optic Isolated Intercom System     Click for larger image of Cab Fiber Optic Intercom Click for larger image of Cab Fiber Optic Intercom
For Outdoor Fiber Optic Intercom Applications

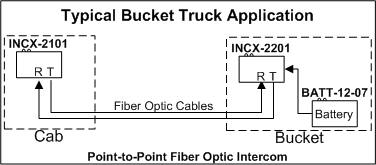

The LiteLink INCX-2101 & 2201 is a high quality fiber optic intercom specifically designed for insulated bucket operations.

The INCX-2101, Local (cab) Intercom Transceiver Unit, utilizes Push-to-talk operation, is powered by the vehicle and contains the remote battery charging unit. This unit has an input for audible alarm, so that a tip sensor output can be utilized.

INCX-2201, Remote (bucket) Intercom Transceiver Unit, has hands free operation and is powered by an external battery unit, BATT-12-07.

Both units contain integrated speaker & microphone, power & volume controls, optical transceiver enclosed in rugged weatherproof metal enclosures. Indicators provide link status as well as battery charge conditions.

Click here for outline drawings

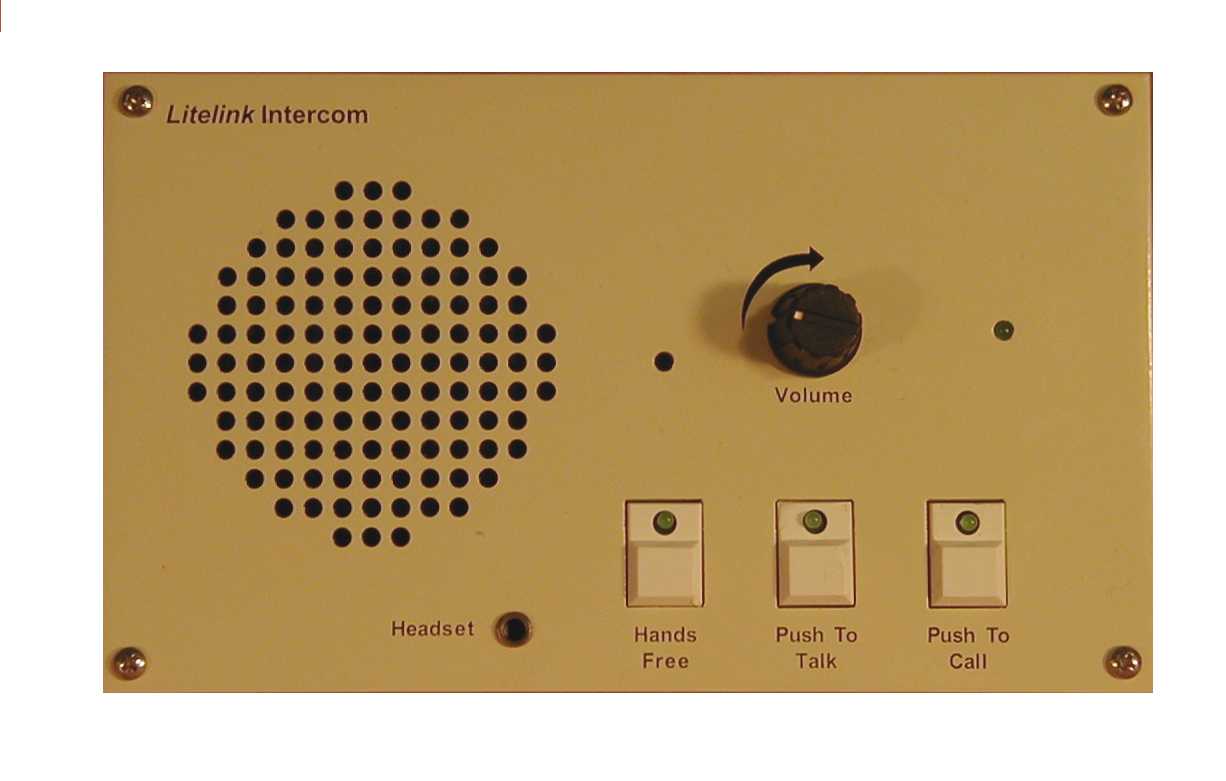

Click here for our Industrial Wired Intercoms

Click here for our Commercial Fiber optic Intercoms


Specifications Important Features
Audio Bandwidth (minimum)  300 to 3500 Hz (+0,-3dB)     Fiber Optics Provides
   10KV/foot High Voltage
    Isolation
Audio Input  Integral Microphone   Rugged Weatherproof Housing
Audio Output  10 watts peak Speaker   Hands Free Operation at Remote
    End
Indicators  Battery State, Link, Power   Battery Powered at Remote End
Controls  Power, Push-To-Talk, Volume   Distances of up to 1000 feet
    possible
Electrical Isolation  10KV/inch (fiber cable alone)
Optical Fiber  Rugged tactical cable
Operating Wavelength  850 nm
Optical Output Power  -16dBm (multimode)
Optical Loss Budget  0-13dB (multimode)
Optical Connectors  Industry standard ST
External Alarm Input  11-16VDC @100 mA
Battery Life  24 hours before recharging
MTBF (per MIL HBK 217D) >120,000 hours
Humidity <95% non-condensing
Power Requirements  11-16 VDC @150 mA
Operating Temperature -35 to +75 C
Physical Size (mm)  7.0 x 5.0 x 2.5"
(178 x 127 x 64)


Note all specifications are subject to change without notice
