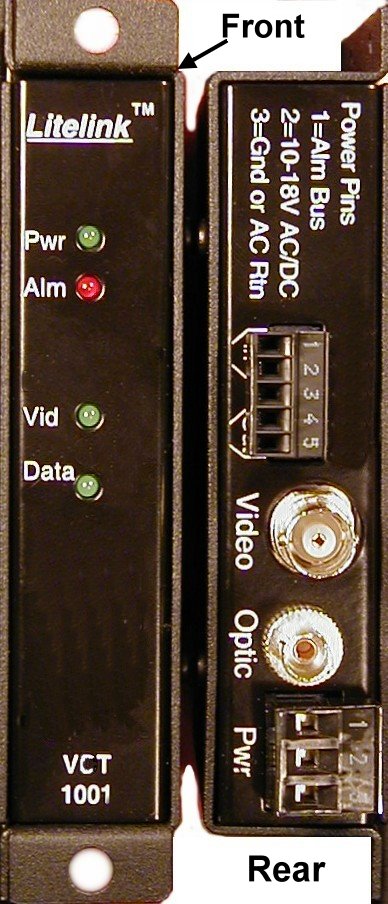

VCT / VCR-1001 Video & Contact Tx   Click for large VCT-1001 Photo
For Video and Contact Closure Applications

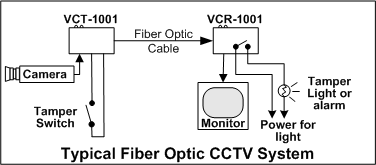

Typical Video Contact Application

The Litelink™ VCT/VCR-1001 system consists of the VCT-1001 transmitter and VCR-1001 receiver. This model utilizes linear modulation and wide-band low noise circuitry to transmit high quality video and contact closure status on a single optical fiber. The contact is typically used for a tamper switch on camera housing. The VCR-1002 is a dual receiver in a single housing.

Both multimode and single-mode versions are available and installation only requires a simple adjustment. Integral indicators are provided on both units to continuously indicate the presence of video signals as well  the presence of operating power making system troubleshooting simple.



Specifications* Important Features
Video Bandwidth (min)  8 MHz (+0, -3dB)    · 8 MHz Video Bandwidth
       · Signal, Contact indicators
Input/Output Impedance  Video 75 ohms  · Cost Effective
Signal/Noise Ratio  60 dB typical  · Signal & Power Indicators
Differential Phase / Gain  3.0º / 3.0 % maximum  · Single model for stand
     alone or rack mount
Output Contact Ratings 0.5 A @ 125 VAC (62.5VA)
 1.0 A @ 24 VDC
 		  · Din Rail Mount Option
Optical Output Power  -15 dBm (multimode),
 -15 dBm (single-mode)
Optical Loss Budget  0-13 dB (multimode),
 0-13 dB (single-mode)
Signal Connectors  Video: BNC
 Audio: Terminal block
Power Requirements  11-24 VAC/DC @150mA
Physical Size  5.0” x 3.0 x 1.0"
127mm x 76mm x 25.4mm

*Note all specifications are subject to change without notice
